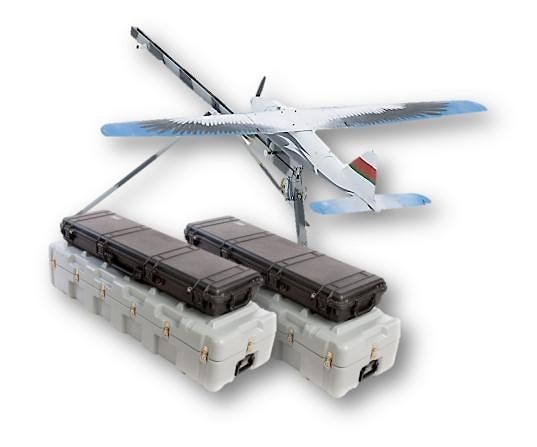

Unmanned aircraft system "Stork-10"

Designation: video surveillance in the optical and infrared ranges of fixed and moving objects with their positioning; aerial photo, video and infrared surveillance of the terrain for military and civil purposes.

Components:

• UAV (2 or more units);
• ground control station (GCS);
• special software;
• launching equipment (catapult);
• ground support equipment;
• spare parts, tools and accessories.

The launch and flight control of the UAV is automated.

It is possible to change the flight program by the operator when the UAV is in the zone of direct radio visibility at a distance of up to 120 km or using the same UAV as a relay station. During the flight, the telemetry and payload information (with reference to the current UAV coordinates) are transmitted to the GCS. It is possible to autonomously execute the task by UAV for the time set by the operator, at a distance of up to 600 km.

Characteristics of the unmanned aircraft system "Stork-10": take-off weight is 19 kg, payload weight is 5 kg, cruising speed is 90-110 km / h, service ceiling is 5000 m, flight duration is up to 14 hours, action radius with the data transmission in real time - 120 km, launch - from the catapult, landing - on the parachute, preparation time for launch - 60 minutes
